MSG Equipment

MS561 PRO Tester for diagnostics of electric power steering units

MS561 PRO Tester for diagnostics of electric power steering units

MSG Equipment
Supplier profileAll products
Contact supplier

Description

The MS561 PRO tester is designed for diagnosing electric power steering (EPS) components removed from vehicles, including steering racks, columns, and pumps. It supports all data transmission protocols, such as CAN, CAN-FD, FlexRay, two independent CAN buses, as well as connection of components controlled via PWM. The tester's software is continuously updated, expanding the database of diagnosable components and adding new diagnostic capabilities.

More from us

Our websiteOur product

More products by MSG Equipment

Trade fair innovation

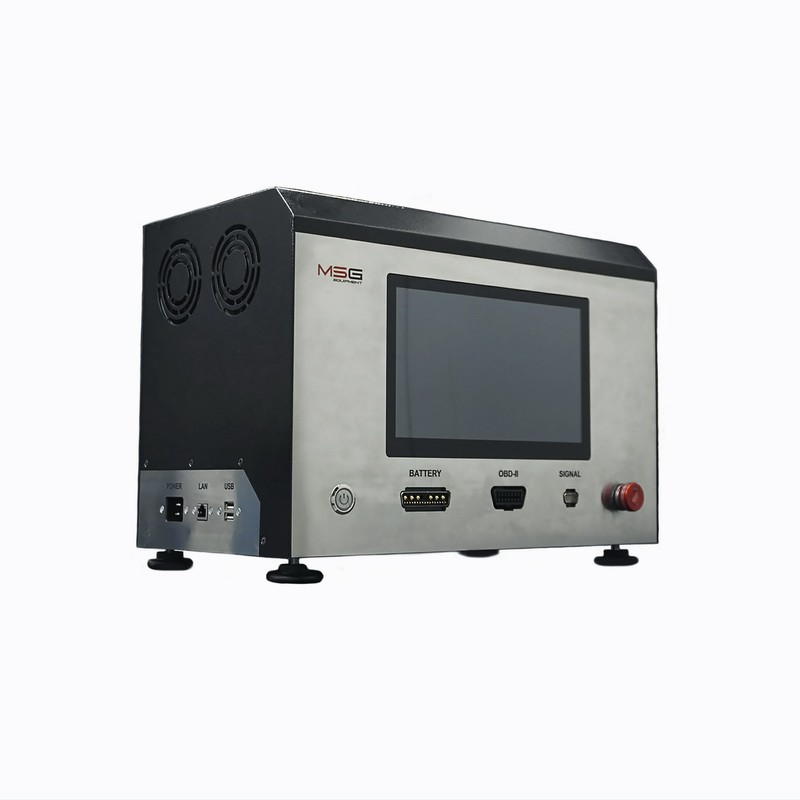

MS801 Tester for diagnosing lithium battery modules of electric and hybrid vehicles

Maximum module voltage: 62V.
2 to 15 cells in series with a maximum voltage of 4.2V per cell.
3 to 16 cells in series LFP (LiFePO4).
Charging current: up to 80A.
Recuperative discharge current: up to 90A (during discharge, energy is returned to the grid).
Built-in resistive load with a current of up to 120A for quick testing of connection quality
between cells and measuring the internal resistance of cells.
16-channel balancer that can operate in both charge and discharge modes, with a current of
up to 2A.
Supports 48V batteries from mild hybrids controlled via CAN bus.
Supports BMS with RS485 bus.
Universal and specialized cables for easy connection of battery modules.
Reverse polarity protection.
Cell temperature monitoring.
Testing scenarios, user-configurable test parameters.
Remote control via LAN.

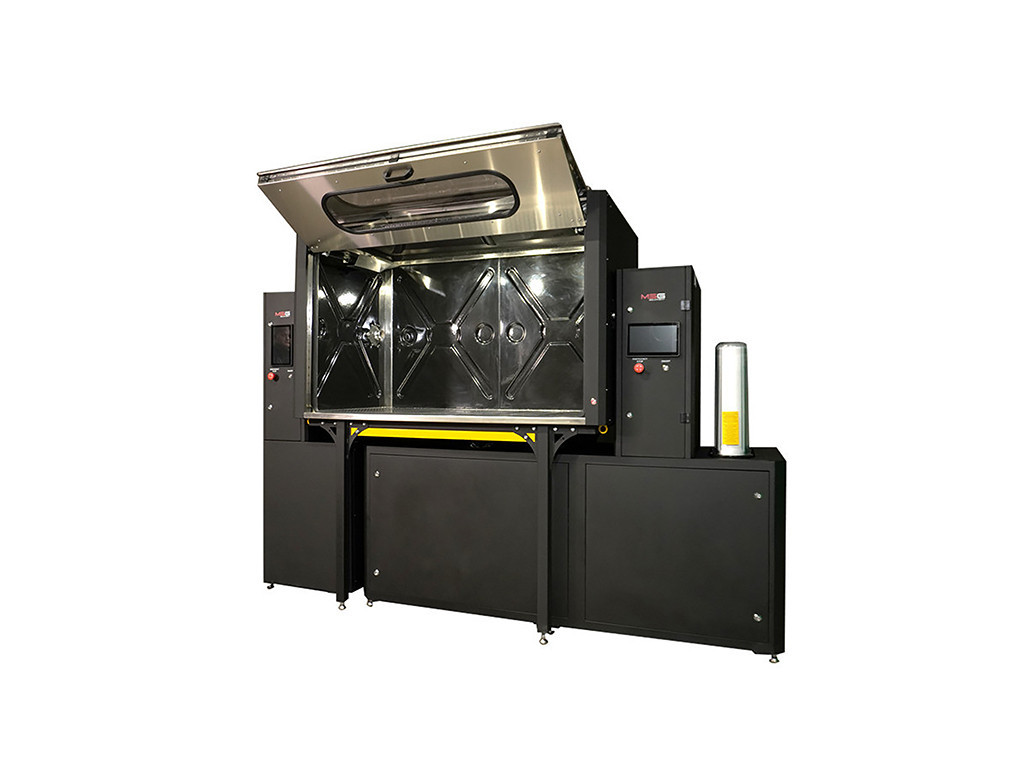

MS900 Stand for washing of particulate filters (DPF, FAP)

The MS900 is a set of equipment designed for cleaning particulate filters in both passenger cars and trucks through a flushing process. It utilizes a unique cleaning method that effectively removes ash and soot from the particulate filter without the use of chemical agents. The washing and drying process is automated, with a user-friendly and intuitive control menu. The enclosed filter cleaning process ensures cleanliness and order in the chamber and workplace.

Features:

  • Low cost of particulate filter flushing.
  • Versatility.
  • Short cleaning time for the particulate filter.
  • High productivity.
  • User-friendly.
  • Storage and printing of particulate filter cleaning results.
  • Safety.
  • Ease of transportation and installation.
  • Free software updates.
